| Product Code : |
APC-PT-PIT090 |
|---|

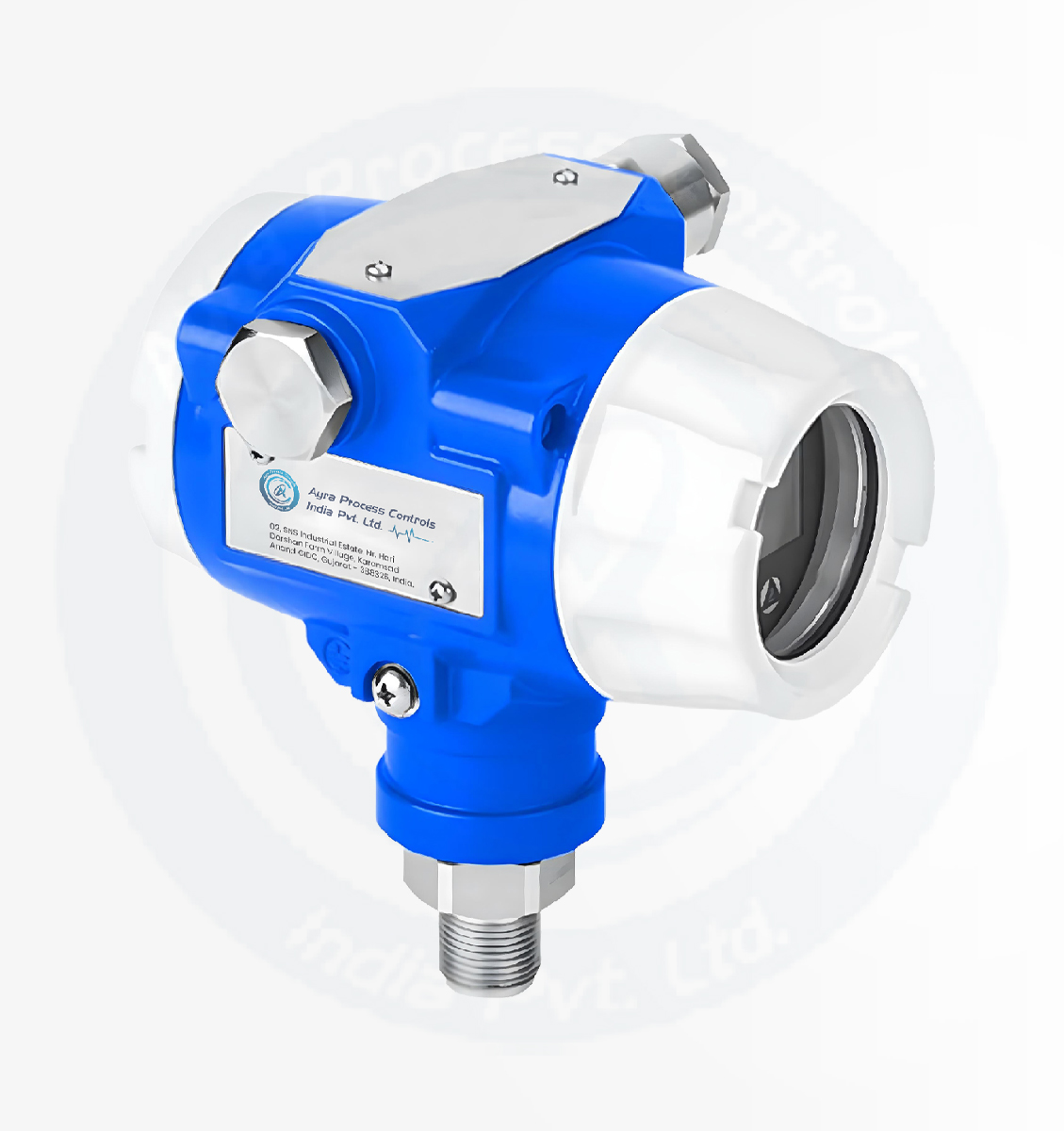

Pressure Indicator Transmitter
The Pressure Indicator Transmitter is a versatile device that measures process pressure and provides both local indication and a standardized electronic signal output (4-20 mA or HART) for remote monitoring and control. It is designed for accurate and reliable pressure monitoring in industries such as oil and gas, chemical processing, power generation, and water treatment.
Specification | Details |
|---|---|
Pressure Range | -1 to 600 bar |
Accuracy | ±0.25% of FS |
Output Signal | 4-20 mA (standard) |
Power Supply | 24 VDC (standard) |
Enclosure | IP65 |
Display | LCD |
Temperature | -20 - 120°C |
Burst Pressure | 300% FS |
Connection | Flanged |
Wetted Part | SS304 |
Diaphragm | SS316 |
Features
- Dual Functionality: Local pressure indication with electronic signal transmission for control systems.
- High Accuracy: Precise pressure measurement and reliable signal output.
- Standardized Output: 4-20 mA analog output with optional HART communication.
- Robust Construction: Built to withstand harsh industrial environments.
- Wide Pressure Range: Suitable for low, medium, and high-pressure applications.
- Easy Installation: Compact design with multiple mounting and connection options.
Applications
- Oil & Gas: Pressure monitoring in pipelines, compressors, and storage tanks.
- Chemical Processing: Ensuring precise pressure control in reactors and pipelines.
- Power Plants: Monitoring steam and feedwater pressure in boilers.
- Water Treatment: Measuring pressure in filtration systems and pipelines.
- Pharmaceuticals: Maintaining consistent pressure in production processes.
- Food & Beverage: Pressure monitoring in sterilization and processing systems.
