| Product Code : |
APC-SG-DWF058 |
|---|

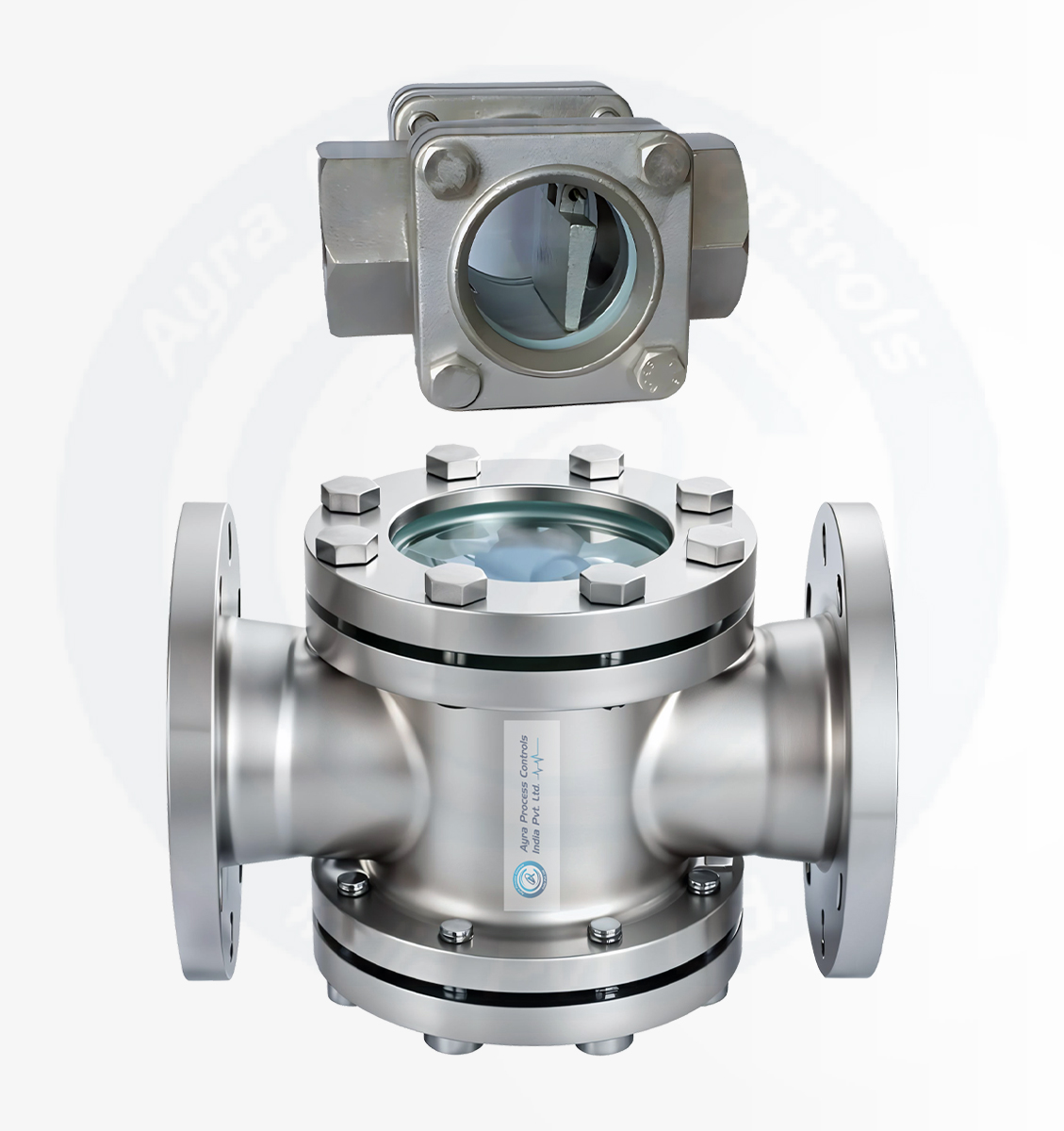

Double Window Sight Glass With Flapper
The Double Window Sight Glass with Flapper is a specialized device used for monitoring the flow of liquids or gases in pipelines. This sight glass includes a flapper mechanism that provides a visual indication of flow direction and rate. The flapper moves in response to the flow, making it ideal for applications where flow detection is critical. It is widely used in industries such as chemical processing, food and beverage, pharmaceuticals, and water treatment for real-time process monitoring.
Specification | Details |
|---|---|
Size Range | ½” to 12” |
Pressure Rating | Up to ANSI Class 300 |
Connection | Flanged or Threaded as required |
Glass Type | Toughened borosilicate or quartz |
Material | SS, CS or Other Alloys |
Features
- Integrated Flapper Mechanism: Highlights flow presence and direction at a glance.
- Enhanced Visibility: Dual glass windows for clear and uninterrupted observation.
- Process Compatibility: Supports fluids, gases, and light to moderate slurries.
- Rugged Build: Withstands high pressure and temperature for challenging applications.
- Corrosion-Resistant Materials: Suitable for aggressive or corrosive media.
Applications
- Flow Verification: Instantly confirms the flow of media in pipelines.
- Corrosive Processes: Perfect for systems transporting aggressive chemicals or gases.
- Fluid Batch Monitoring: Used in pharmaceutical or food processing to ensure accuracy.
- Power Plants: Identifies coolant or steam flow in safety-critical operations.
- Effluent Systems: Monitors wastewater discharge in treatment plants.
