| Product Code : |
APC FM-EMF021 |
|---|

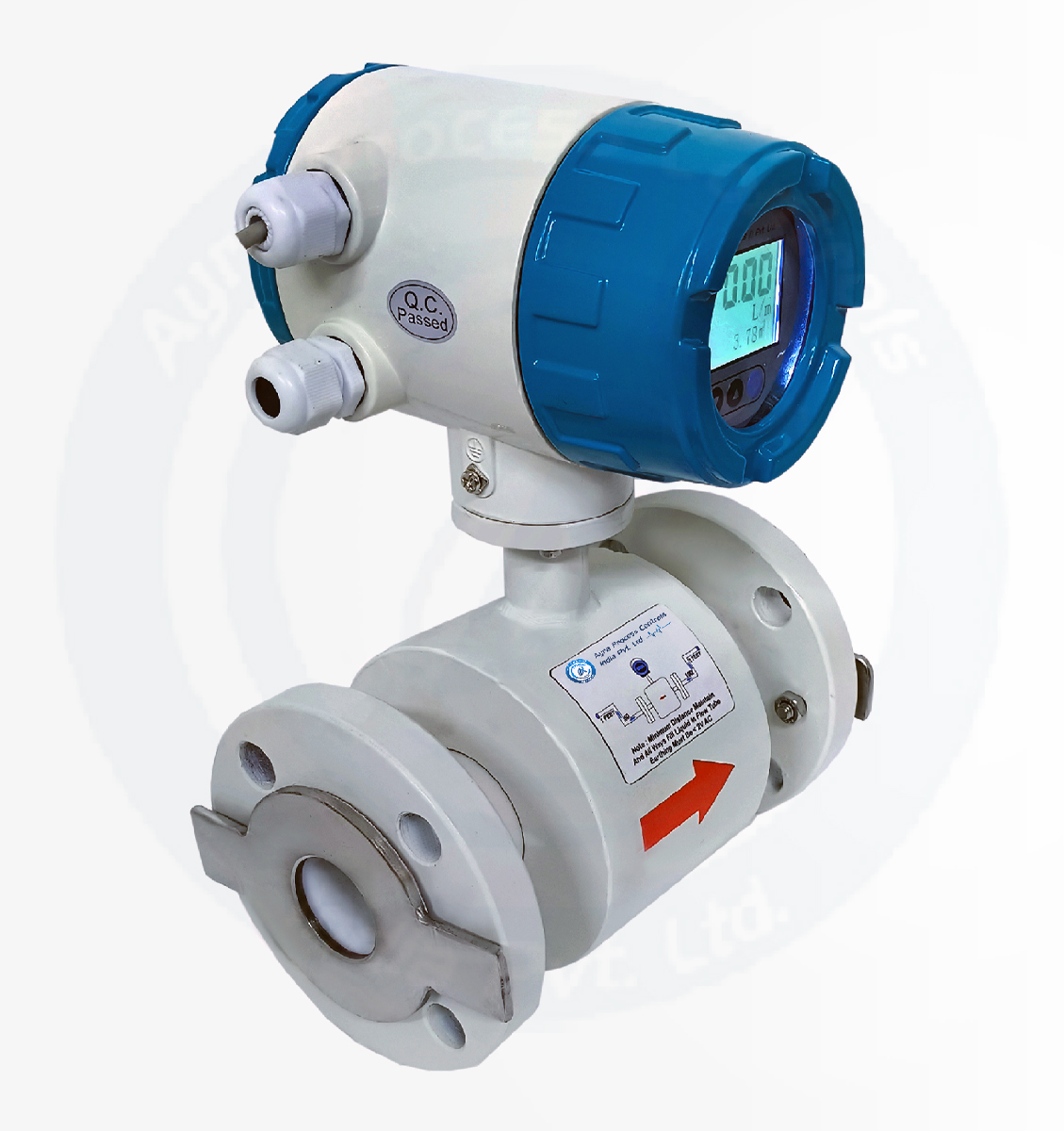

Electromagnetic Flow Meter
The Electromagnetic Flow Meter is a precise instrument designed to measure the flow rate of conductive liquids. It operates based on Faraday’s law of electromagnetic induction, ensuring accurate readings without any moving parts. This design minimizes maintenance and enhances durability, making it suitable for various industrial applications. The Electromagnetic Flow Meter from Ayra Process Controls India Pvt Ltd ensures precise and dependable flow measurement, catering to the diverse needs of modern industries.
Specification | Details |
|---|---|
Size Range | 15 NB TO 600 NB |
Connection | Flanged to ASA/BS/DIN/JIS standards |
Power Supply | 24V DC/230 VAC |
Accuracy | ±0.5% of Full Scale Deflection (FSD) |
Pressure Rating | Up to 40 bar |
Totaliser Display | 10 digit LCD |
Flow Rate Display | 5 Digit LCD |
Lining | PTFE, EPDM, Rubber PFA PVDF |
Minimum Conductivity | 5 µs/cm |
Process Temperature | Up to 80°C for Rubber / Up to 150°C for PTFE |
Electrodes | SS 316,Hastalloy C, Titanium, Monel, Pt-Rh |
Protection | IP66 / Ex-Proof; Optional: IP 68 |
Flow Units | M3/H, M3/M,M3/S, L/H,L/M,L/S, USG/H,USG/M,USG/S |
Lowest Velocity | 0.033 m/s |
Highest Velocity | 15 m/s |
Output | 4-20 mA, Pulse |
Communication Port | RS485 |
- High Accuracy: Delivers consistent and reliable flow measurements.
- No Moving Parts: Reduces wear and tear, ensuring long-term performance.
- Wide Compatibility: Ideal for conductive liquids such as water, slurries, and chemicals.
- Easy Installation: Designed for seamless integration into existing pipelines.
- Low Maintenance: Non-intrusive design minimizes maintenance requirements.
- Water Treatment Plants: Ideal for raw, treated, or wastewater flow measurement.
- Chemical Industry: Measurement of corrosive chemicals and solvents.
- Food & Beverage: Monitoring the flow of liquid ingredients, beverages, or milk.
- Pharmaceuticals: Flow control of liquid chemicals and solvents.
- Pulp & Paper: Measurement of pulp slurry and process water.
- Power Plants: Monitoring cooling water or feedwater.
