| Product Code : |
APC-FE-OPFA040 |
|---|

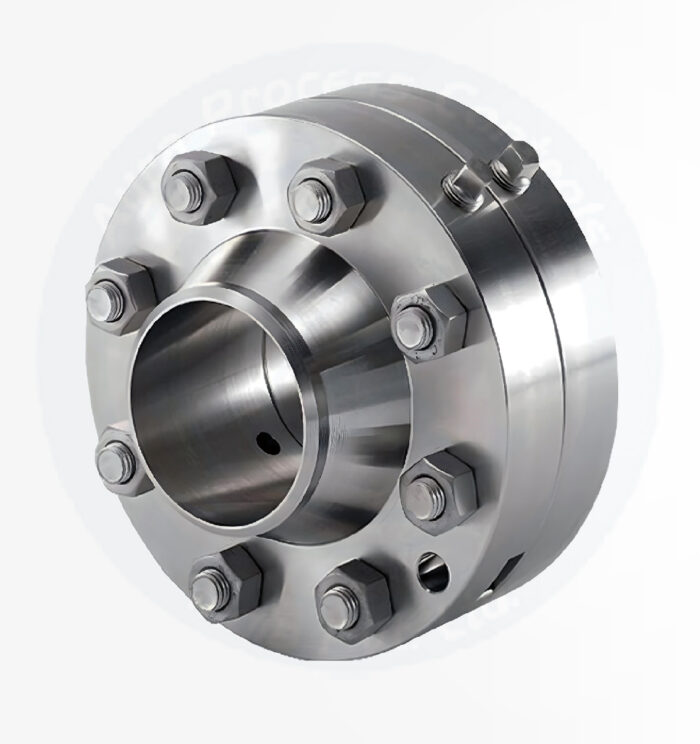

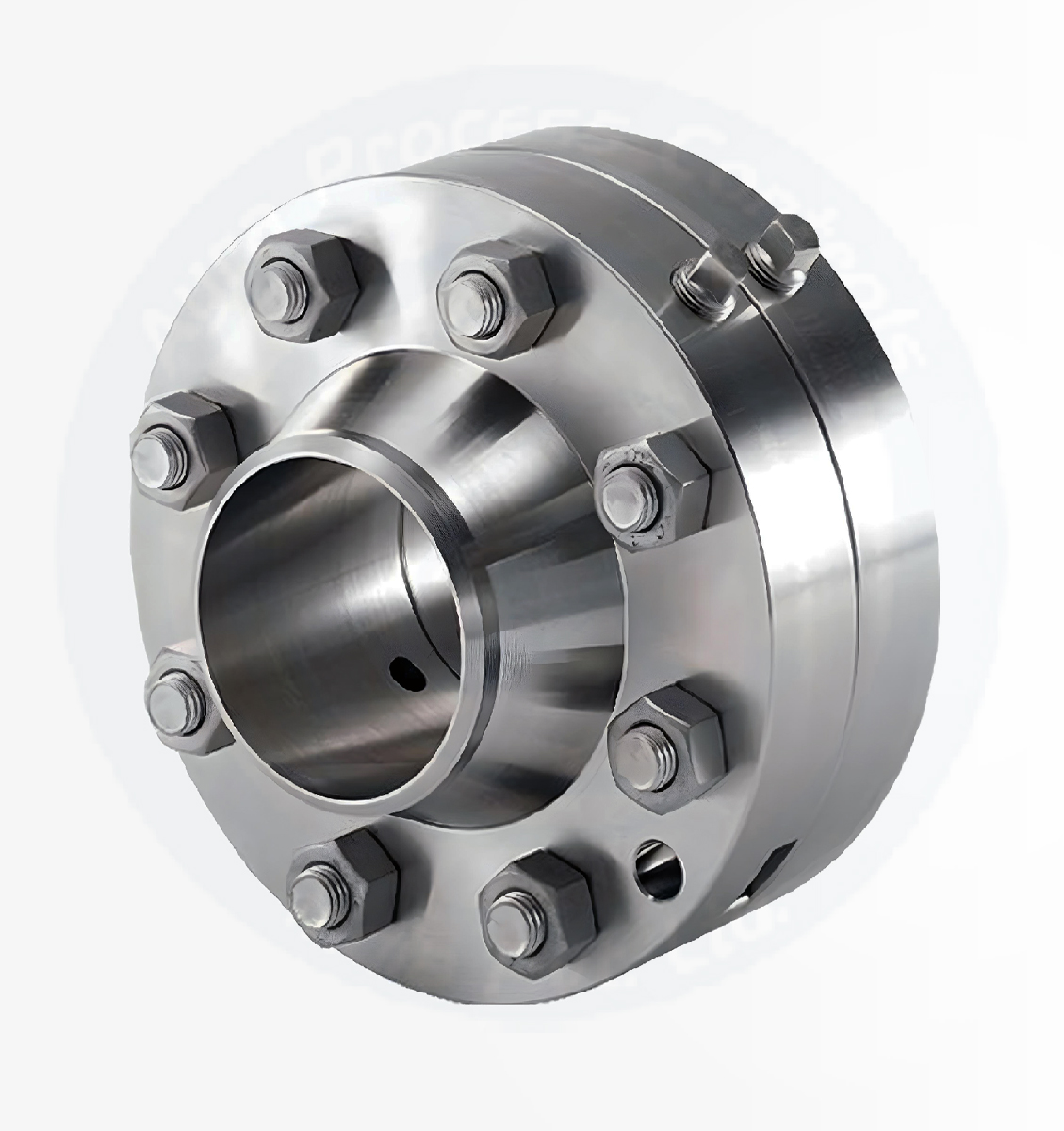

Orifice Plate with Flange Assembly
The Orifice Plate with Flange Assembly is a complete flow measurement system designed to simplify the installation and operation of orifice plates in pipelines. It combines the orifice plate with a pair of flanges, bolts, nuts, and gaskets to ensure a secure and leak-free connection. This assembly is widely used for measuring the flow of liquids, gases, and steam in industrial applications.
Specification | Details |
|---|---|
Accuracy | ±0.5% of reading |
Pressure Rating | Up to ANSI Class 2500 |
Material Options | Stainless steel, carbon steel, or alloys |
Assembly Includes | Orifice plate, flange, bolts, nuts & gaskets |
Components of the Assembly
- Orifice Plate: Accurately machined to create the required flow restriction.
- Flanges: Pair of flanges drilled to match pipe specifications for secure mounting.
- Gaskets: Ensures leak-proof sealing between the orifice plate and flanges.
- Bolts and Nuts: High-strength materials for reliable connection under pressure.
Applications
- Oil and Gas Industry: Accurate flow measurement in pipelines.
- Chemical and Petrochemical Plants: Monitoring process flows of liquids and gases.
- Power Plants: Steam flow measurement in boiler and turbine systems.
- Water Treatment Plants: Flow control and measurement in distribution systems.
- Food and Beverage Industry: Hygienic flow measurement for liquids.
