| Product Code : |
APC-FE-OP039 |
|---|

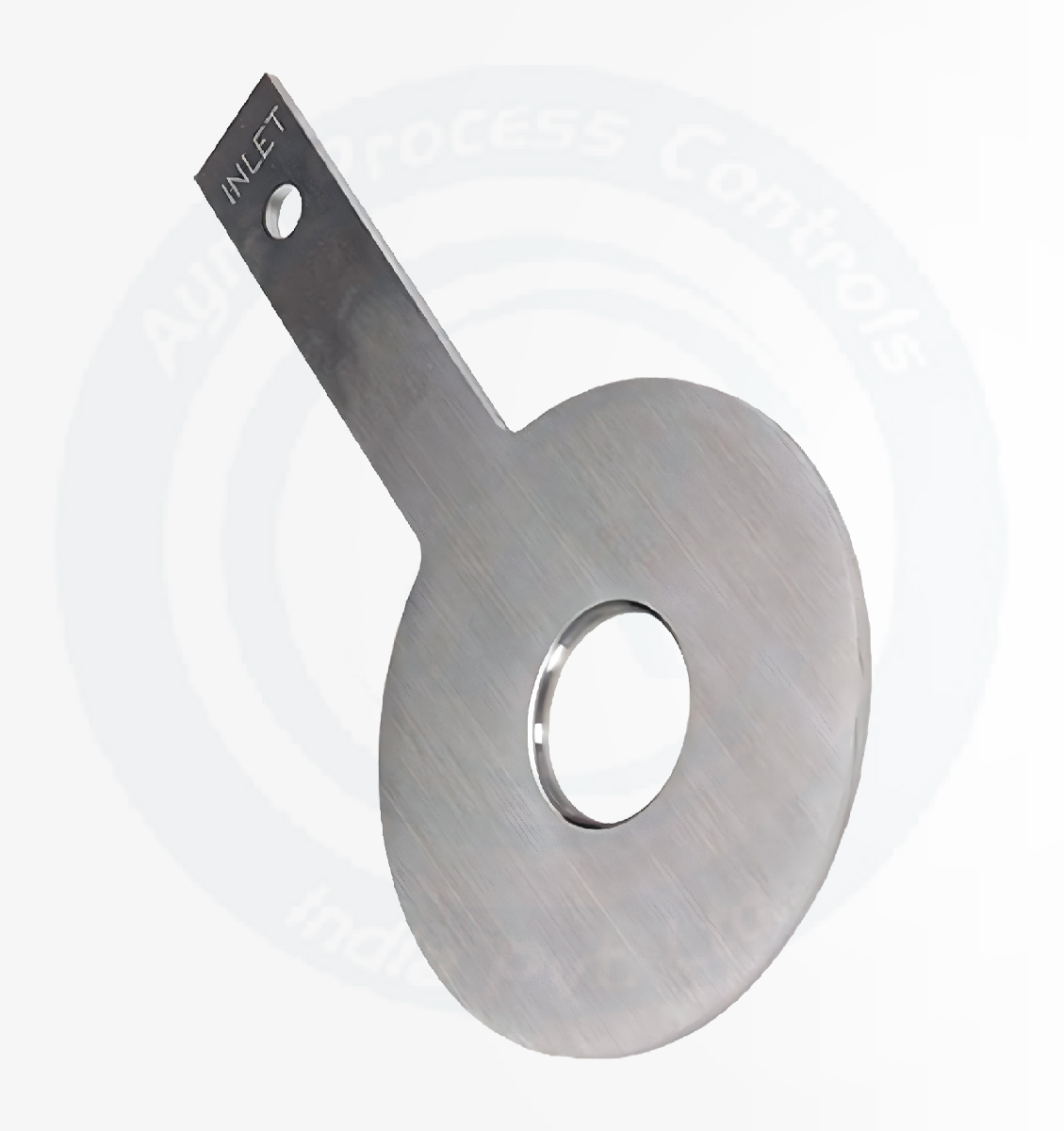

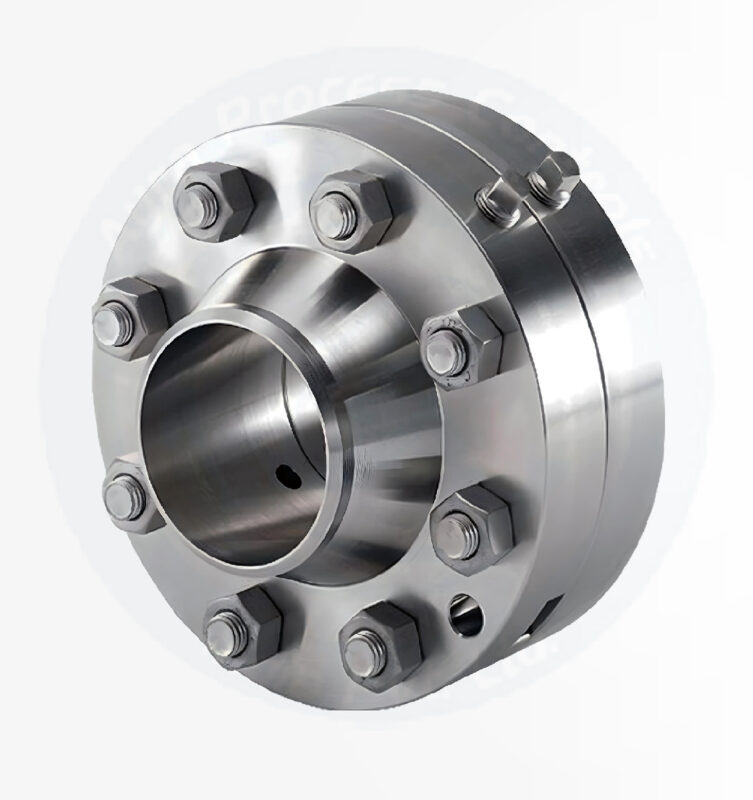

Orifice Plate
The Orifice Plate is a simple and reliable device used for flow measurement and pressure reduction in pipelines. It operates on the principle of differential pressure, where a restriction in the pipe (the orifice) causes a pressure drop, which is proportional to the flow rate. Widely used across industries, it is a cost-effective and robust solution for measuring flow in liquids, gases, and steam.
Specification | Details |
|---|---|
Size Range | 1” to 24” |
Accuracy | ±1% of Flow Rate |
Thickness | 3 mm to 10 mm |
Pressure Rating | Up to 150 bar |
Material Options | Stainless Steel (SS304, Ss316) Carbon Steel, Brass |
Types of Orifice Plates
- Concentric Orifice Plate: Standard design for clean liquids, gases, and steam.
- Eccentric Orifice Plate: For slurries or fluids with entrained solids to prevent clogging.
- Segmental Orifice Plate: Suitable for applications with high particulate matter or solids.
- Quadrant Edge Orifice Plate: Designed for viscous fluids at low Reynolds numbers.
Applications
- Oil and Gas Industry: Monitoring flow in pipelines and processing units.
- Chemical and Petrochemical Plants: Measuring flow of liquids and gases in production processes.
- Power Plants: Steam flow measurement in boilers and turbines.
- Water Treatment Plants: Flow control in distribution and treatment processes.
- Food and Beverage Industry: Flow measurement in hygienic applications.
