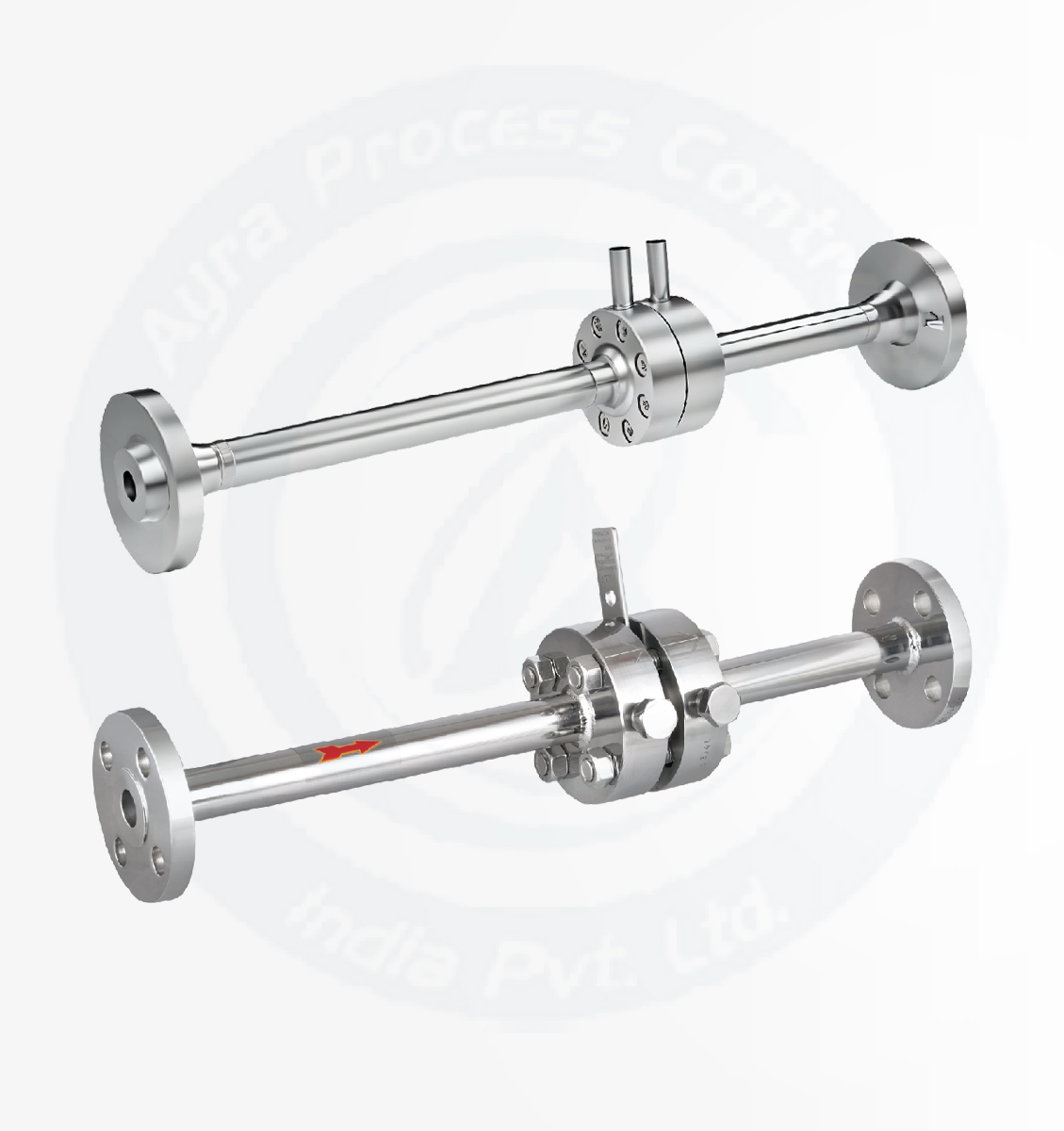

Integral Orifice Flange Assembly (SORF)
The Integral Orifice Flange Assembly (SORF) is a compact and efficient flow measurement solution that combines the orifice plate with a single-piece raised face flange assembly. Designed for precision and ease of installation, this assembly is suitable for low-flow applications of liquids, gases, and steam. Its simple and durable design makes it ideal for industrial systems where space and accuracy are critical.
Specification | Details |
|---|---|
Size Range | ½” to 4” |
Accuracy | ±0.5% of Reading |
Pressure Rating | Up to ANSI Class 1500 |
Material Options | Stainless steel, carbon steel, or alloys |
Display | Integral orifice plate with single orifice raised face |
Advantages of Integral SORF Design
- Compactness: Combines the orifice plate and flange into a single unit for reduced space requirements.
- Leak-Proof Construction: Fewer connections minimize the risk of leakage.
- Precision Machining: Ensures accurate flow measurement with reliable performance.
- Simplified Maintenance: Easy to remove and clean, reducing downtime.
Applications
- Process Industries: Precise flow measurement in chemical and petrochemical plants.
- Oil and Gas: Flow monitoring in pipelines for liquid and gas products.
- Power Plants: Steam flow control in turbines and boilers.
- Water Treatment: Flow measurement in distribution and treatment systems.
- Pharmaceuticals: Hygienic flow measurement for critical processes.
- Compactness: Combines the orifice plate and flange into a single unit for reduced space requirements.
- Leak-Proof Construction: Fewer connections minimize the risk of leakage.
- Precision Machining: Ensures accurate flow measurement with reliable performance.
- Simplified Maintenance: Easy to remove and clean, reducing downtime.
- Process Industries: Precise flow measurement in chemical and petrochemical plants.
- Oil and Gas: Flow monitoring in pipelines for liquid and gas products.
- Power Plants: Steam flow control in turbines and boilers.
- Water Treatment: Flow measurement in distribution and treatment systems.
- Pharmaceuticals: Hygienic flow measurement for critical processes.
